Tan model validity

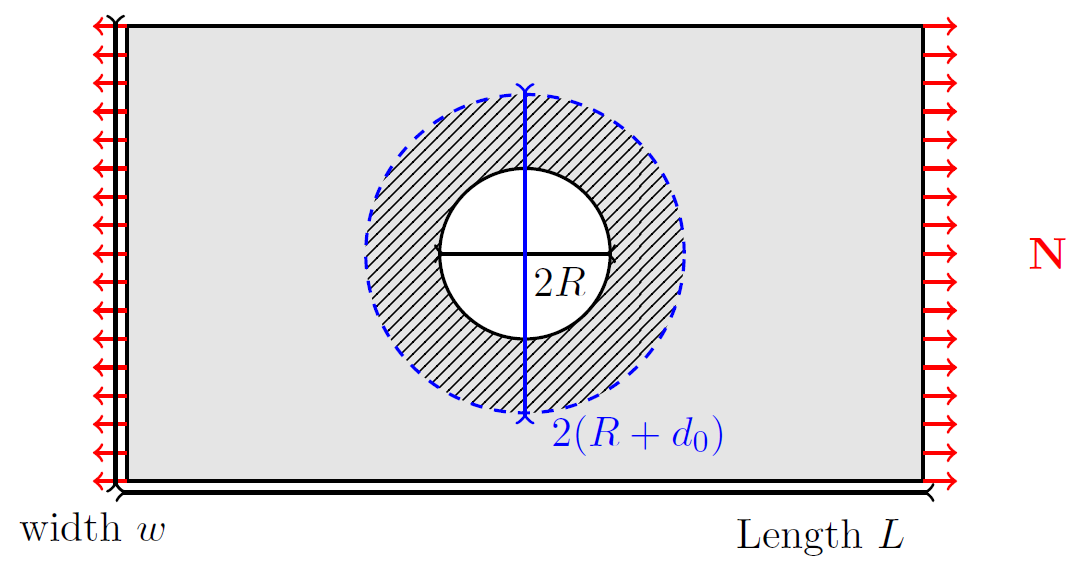

TanOpenHole is a model representing composite Open-Hole sample (notched plate), based on Tan's work on the stress-field analytic solution (pure elasticity hypothesis) and and the "point-stress distance" failure criterion. When damage occurs (matrix cracking, and possibly later some fibers failure), there are some local stress redistributions and the considered linear elastic law becomes invalid locally. Engineers use the "point-stress" method, as a correction of basic linear-elastic results, in order to estimate the occurence of substancial damage propagation (fibre failure). This method consists in observing the stress value (computed from a fully elastic structure) at a distance 'd_0' from the hole ("point-stress distance"), instead of the direct vicinity of the hole. Despite some physical meaningfulness of 'd_0', its value is actually identified from tests and it is highly sensitive to many parameters (material ply properties, layup, size of the hole, etc). The geometry corresponding to this new configuration is illustrated in the following figure:

In the previous figure, the stripped area is where the computed stress is ignored, for estimation of damage occurence. Note that for a critical loading, it also matches approximately where the elastic model is no longer valid

Reserve factor

Following the point-stress method, the fibre-direction failure criterion is evaluated over the valid zone only, \(r \geq R + d_0\):

\[ \mathrm{crit} = \max\left(\frac{\sigma_{xx}}{X_t}, \frac{-\sigma_{xx}}{X_c}\right) \]

that is \(\sigma_{xx} / X_t\) where the laminate is in tension and \(|\sigma_{xx}| / X_c\) where it is in compression, \(X_t\) and \(X_c\) being the longitudinal tensile and compressive strengths of the ply. Failure is reached at \(\mathrm{crit} = 1\). Inside the ignored zone \(r < R + d_0\) -- the stripped area of the figure above -- the criterion is undefined and returned as nan.

The reserve factor is the inverse of the maximum of the criterion over the valid zone:

\[ \mathrm{RF} = \frac{1}{\max(\mathrm{crit})} \]

The criterion reaches its extrema on the circle \(r = R + d_0\), the boundary of the ignored zone. In order to read them exactly rather than to interpolate them from the Cartesian grid on which the stress field is evaluated, the criterion is output on a dedicated mesh whose nodes are those of the grid plus a set of nodes lying exactly on that circle. Those additional nodes make the mesh unstructured (it is triangulated), so the criterion is written to its own file, criterion.vtk, while the stress field keeps its structured grid in flux.vtk. The reserve factor is therefore independent of the grid_resolution input.

In the model outputs, both quantities are available in two forms. As fields, on the enriched mesh written to criterion.vtk, where they are defined outside the ignored zone only. As scalars, crit and reserve_factor, which are the critical values of those fields over the valid zone: crit is the maximum of the criterion field, and reserve_factor is the minimum of the reserve factor field. The two statements are equivalent, the criterion being non-negative:

\[ \min_{r \geq R + d_0} \mathrm{RF} = \frac{1}{\max_{r \geq R + d_0} \mathrm{crit}} \]

so there is no separate "minimum reserve factor" output: reserve_factor already is it.

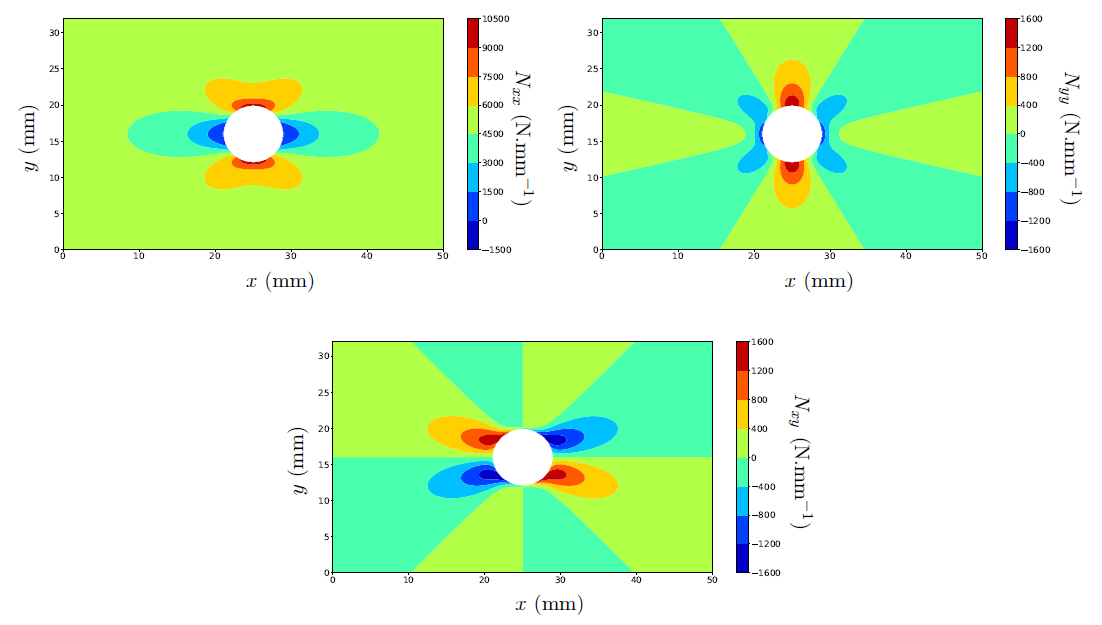

Example of results
