Sensitivity
Results for OpfmPlate OHT¶
Layup \([45, 0, 135, 90, 90, 135, 0, 45]\)

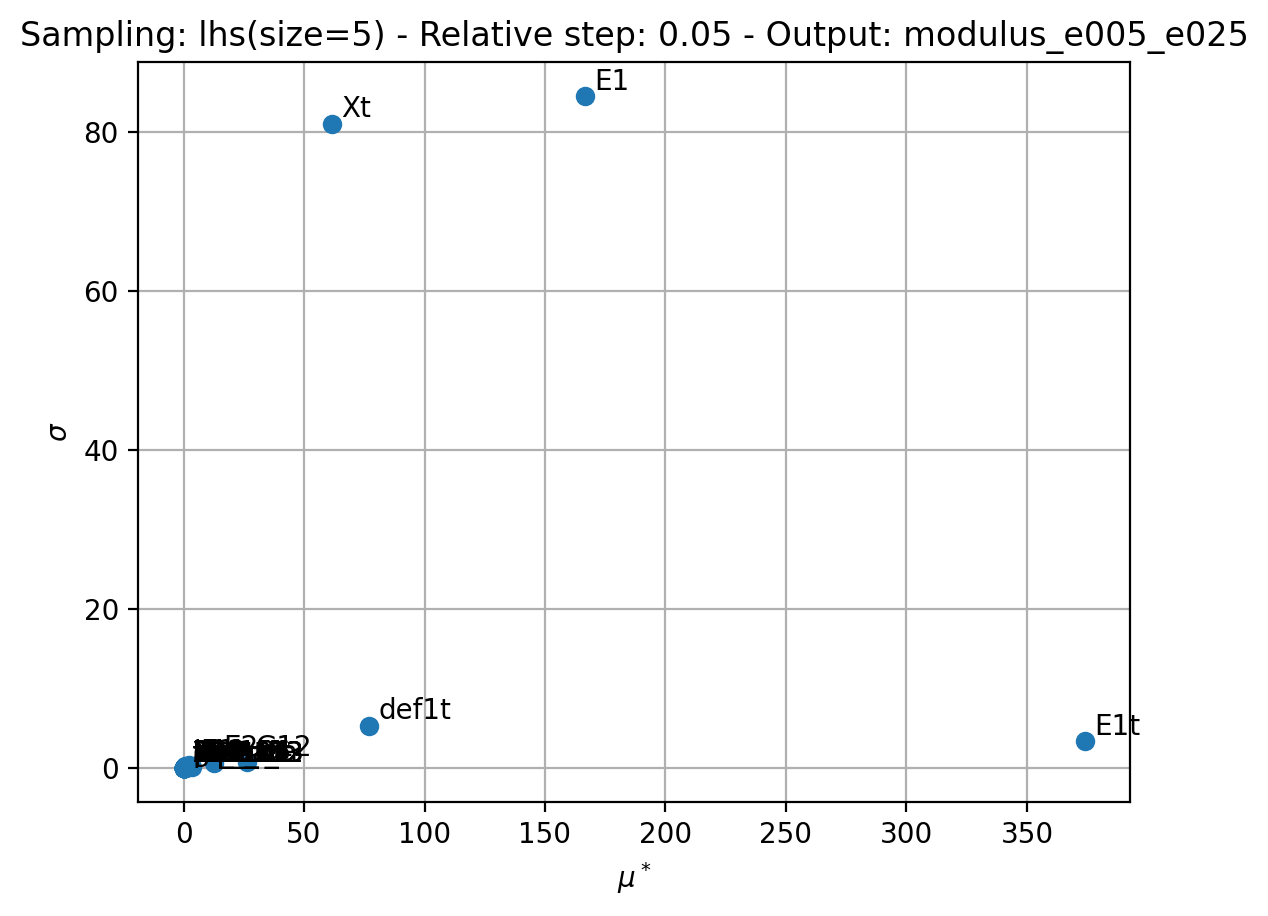

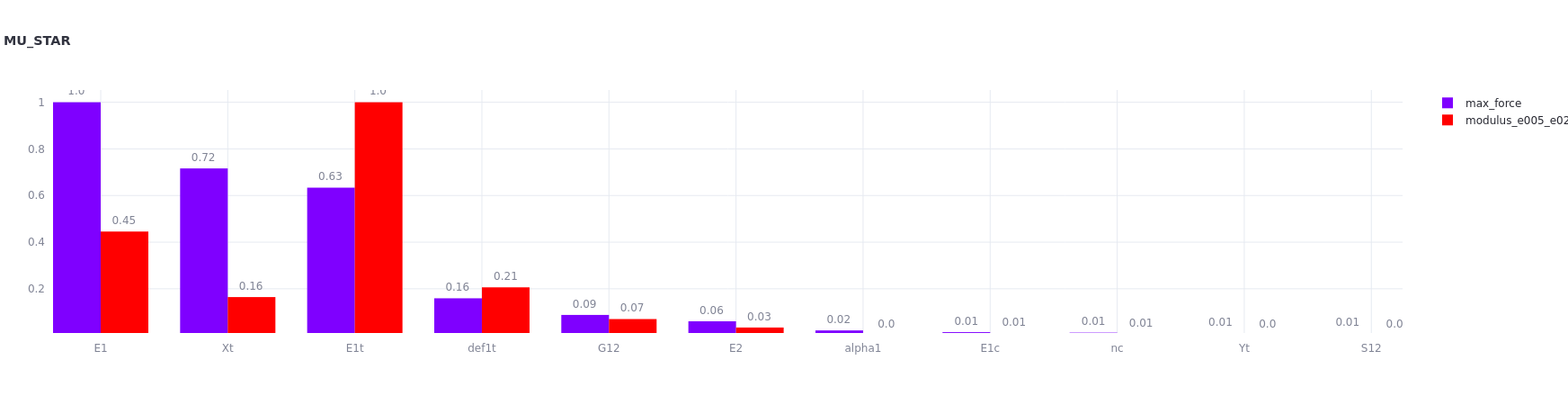

| \(cov=5 \%\) |
|---|
 |

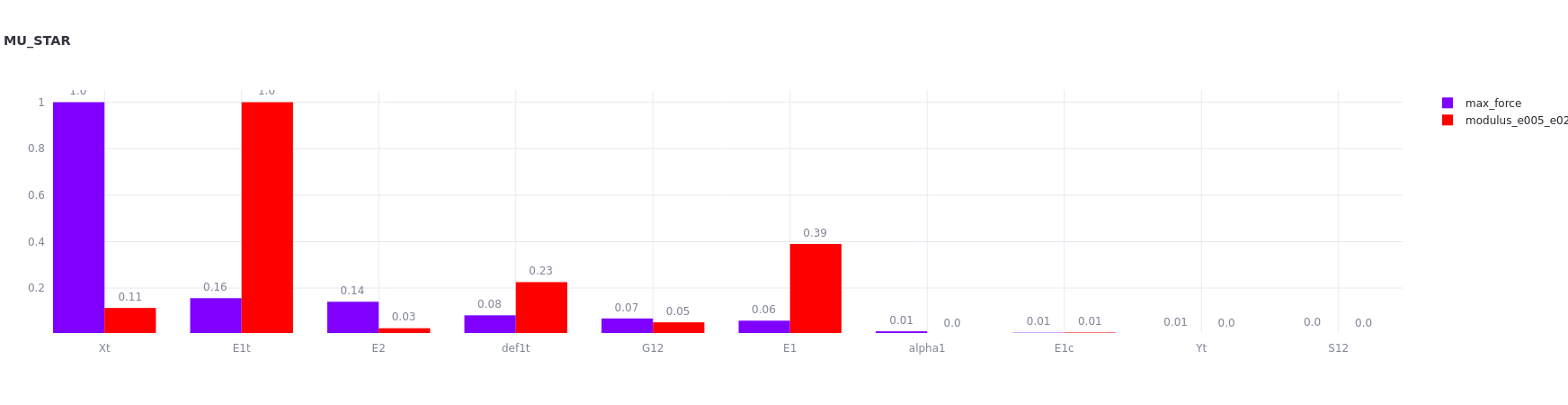

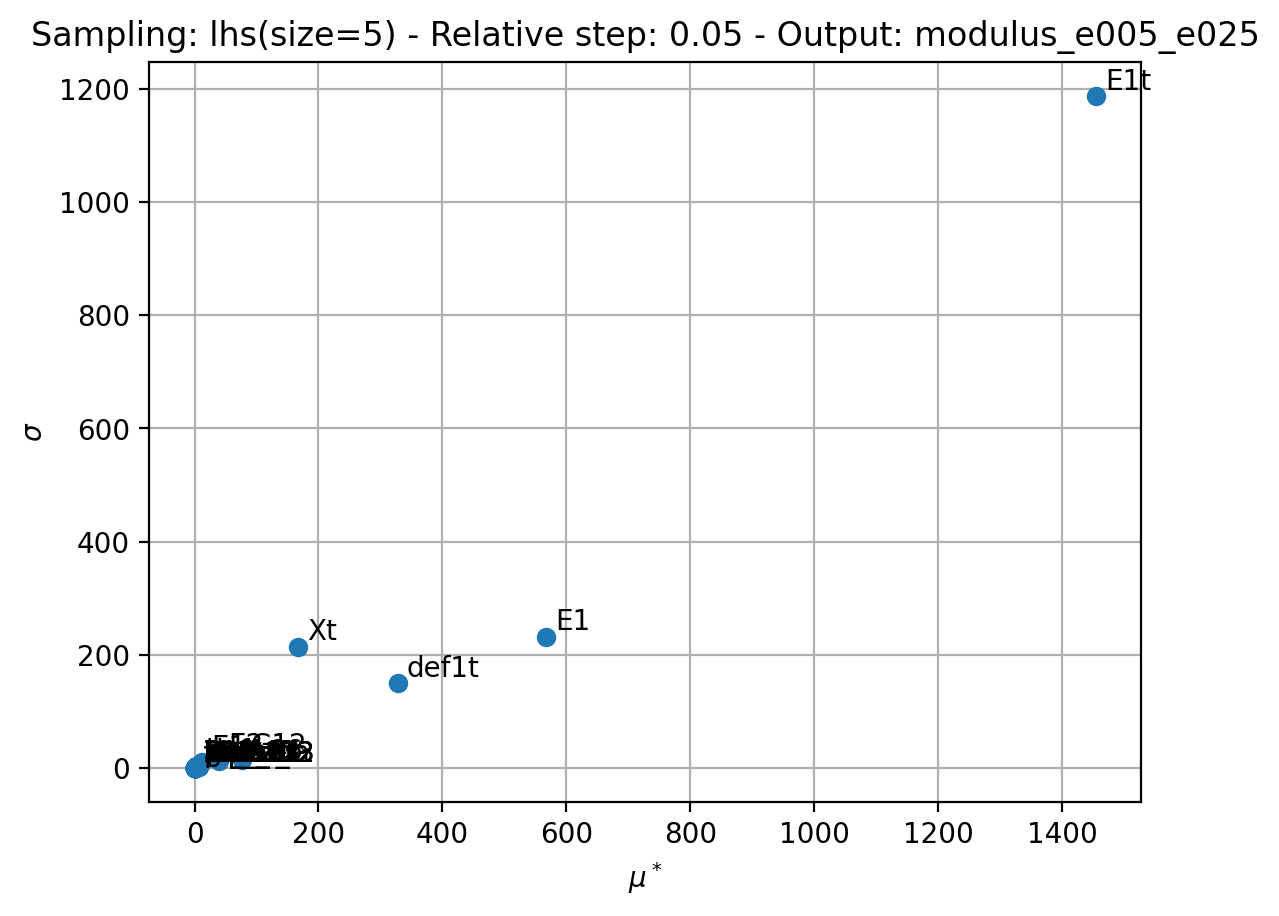

| \(cov=20 \%\) |
|---|
 |

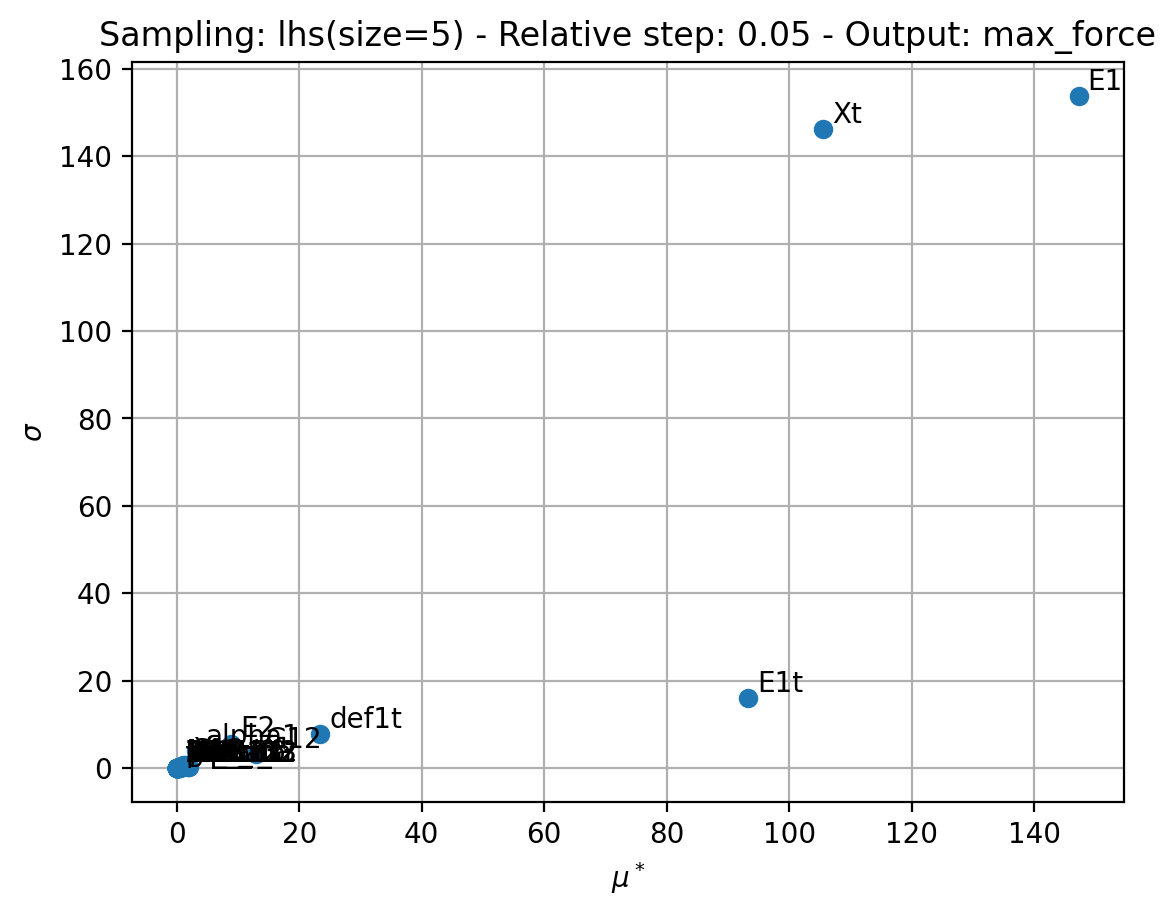

Based on the max force, the most sensitive inputs are \(E_1\), \(X_t\), \(E_{1t}\) and \(def_{1t}\).

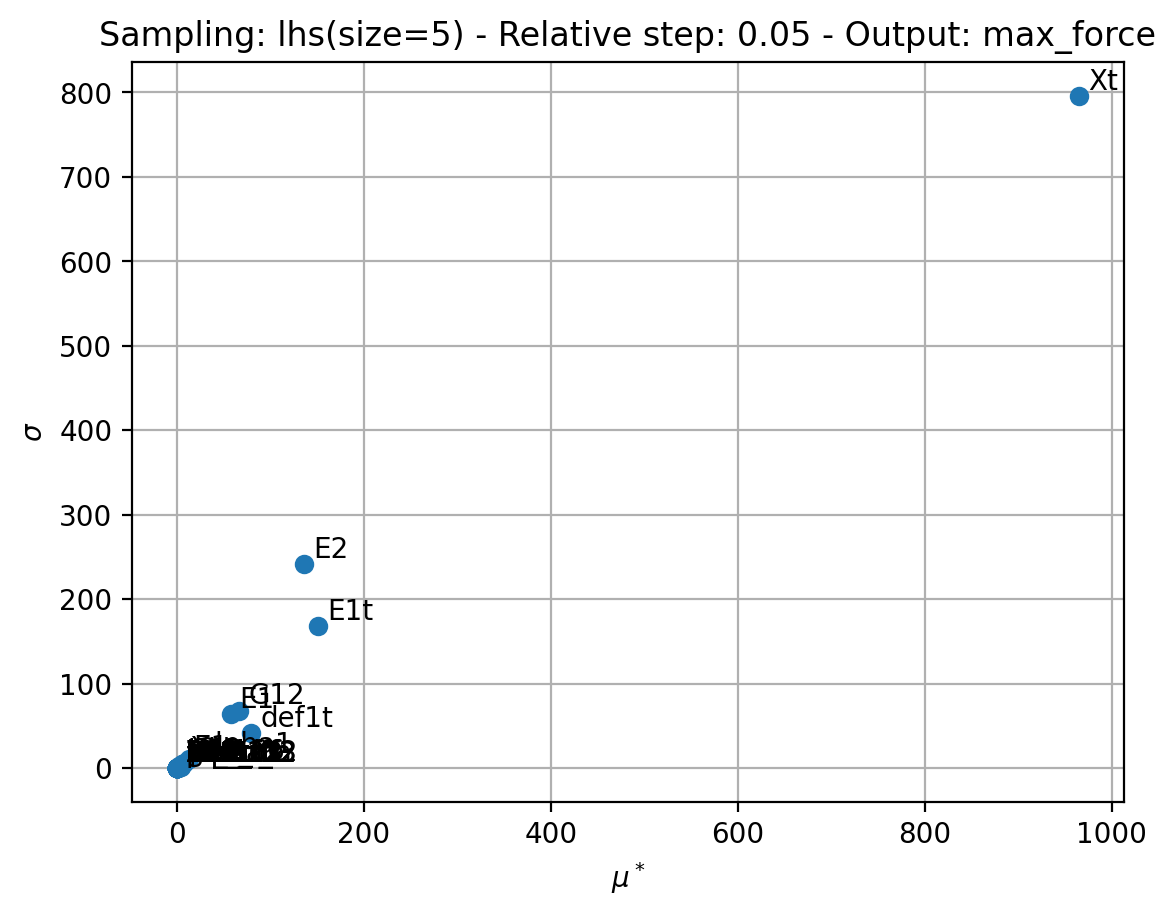

| \(cov=5 \%\) | \(cov=20 \%\) |
|---|---|
 |
 |
 |
 |
Interestingly, based on the max force, the sensitivity ranking of the inputs is different on the two parameter spaces.
